If the power of your business require a large amount of dirty dishes, which can not handle with hood type dishwasher, you should pay attention to the continuous conveyor tunnel type. These machines are capable 0in limited amount of time to wash a huge number of dishes.
The principle of tunnel dishwashers simple: cookware is placed on a continuously moving conveyor, and as you move inside the machine, it will pass through various washing zones.Typically, this washing zone is divided into a zone where intensive ware is cleaned of dirt by means of water and detergents and rinsing zone, in which the tableware is washed in hot water and rinsing means. During the wash water temperature 160F.
Industrial tunnel dishwashing machines ATLANTIS DISHMACHINE dining room or restaurant:
- made up of modules, each of which is responsible for a specific process: pre-wash, wash first reinforced sink, pre-rinse, rinse, rinse enhanced etc;
- have HACCP monitoring option and the ability to install data control program to store information in memory;
- It is simple to operate and maintain.
Tunnel dishwasher type R42 is designed for dining room or restaurant with the latest technologies and developments professionals. Model R42 economical and effective, is an excellent choice for any business sector catering.
Unique features of the conveyor tunnel dishwashers ATLANTIS DISHMACHINEproduction:
- weldless bath, multi-filtration system
- double insulated walls of the machine, in order to reduce noise and heat
- samoslivnoy washing pump
- electronic control panel
Tunnel dishwasher ET 1650 is equipped with dosing detergent and rinse aid and a special heat exchanger, which allows you to connect the machine to the cold water.
.
|
wash cycle |
Cassettes / hour |
Plates / hour |
|---|---|---|
|
Series I * |
60 |
1080 |
|
Cycle II * |
100 |
1800 |
|
Dimensions, mm |
42 x 31 x 59 |
|
|
The height of the feed opening |
18 |
|
|
cassette Size |
20 X 20 |
|
|
modes |
Washing / rinsing |
|
|
Power washing pump |
1.1 kW |
|
|
The power of the heating bath / boiler element |
6kW / 14kW |
|
|
general power |
21,25kVt / 4208/240 60hz |
|
|
Water inlet temperature / pressure of water supplied / Water hardness |
Max. 55 ° C / 200-400kRa / min. 7 max 12 ° dF ** |
|
|
The size of the inlet for the water / size drain / maximum height of the drain hole |
R? "/ 1"? / Drain hole in the floor |
|
|
Temperatures wash / rinse temperature |
55 ° C / 85 ° C |
|
|
The capacity of the bath |
28L |
|
|
Performance pump |
503 l / min |
|
|
water consumption |
285 l / h |
|
|
Features and accessories |
||
|
Samoslivnaya washing pump |
standard model |
|
|
Dual Filtration System |
standard model |
|
|
Extruded wash tub with rounded corners |
standard model |
|
|
Double-walled housing |
standard model |
|
|
Boiler with thermal insulation |
standard model |
|
|
Control panel 24B |
standard model |
|
|
automatic start and stop function |
option |
|
|
steam Condenser |
option |
|
|
drying unit 9, or 12 kW (+ 24in in length of the machine) |
option |
|
PHOTO GALLERY

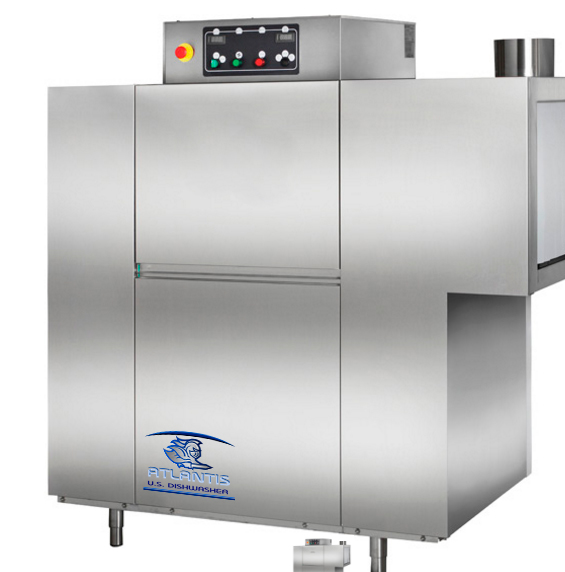

CONVEYOR dishwasher R44 - compact and practical
Remote control with temperature display
- The machine is completely made of stainless steel AISI 304.
- Housing with double insulation reduces energy costs, reduces noise and heat.
- Specially designed not to clog the wash and rinse arms in stainless steel, they are easy to remove, do not require special tools.

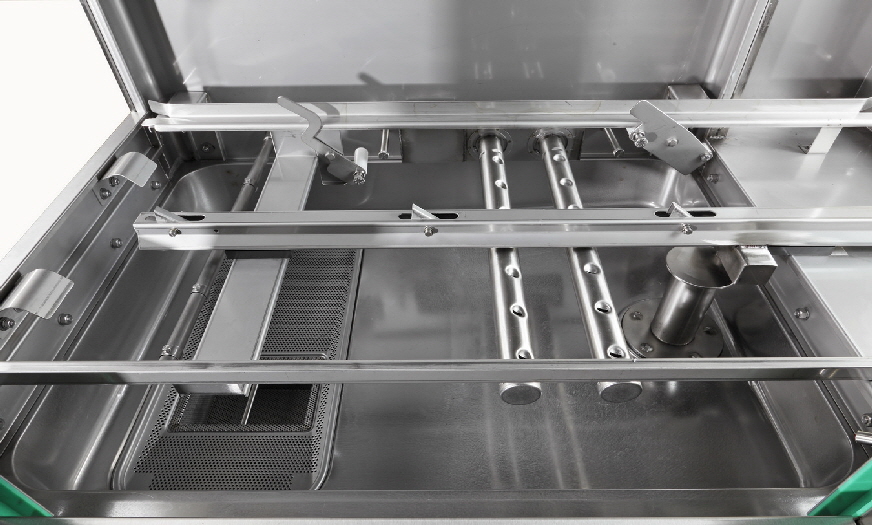

- Extruded wash tub with rounded corners and double filters for easy cleaning and simple maintenance.
- Highly effective detergent pump to ensure excellent hygiene and high quality washing.
- Boiler with thermal insulation
- All electrical components are 24V for security guarantees
- Water saving device for rinsing
* Performance when connected to a water temperature of 50 ° CÂ
** with water hardness above 12d° of dF is recommended to use water softener
|
|
