undercounter dish
  • SOFTENER - removes lime scale from water for streak free and more efficient and economic use of detergent (up to 70% savings)
  • ENERGY - special add on of break tank and Rinse Pump for places with low water pressure

Model

Dimensions, in

power, kWt

cycle time, s

Productivity
racks per hour

cassettes Dimensions

The height of the feed opening

Front dishwashers

    UCHT-500

25 x 24 X 33

4.9

60/120/180/480

30/20

20 x 20

12-¾ in

    UCHT-700

24-¼ x 24-¼ X 34

5.1

60/120/180/480

32/20

20 x 20

13-¾ in

    Machines for washing GN, baking sheets, trays and plates for pizza with front loading

    UCHT-800

27 x 28-¾ x 43-¼

6.75

175/20/180

48/30/20

22.8 x 24.8

16-¾ in

PREMIUM  models are our most advanced models . BASIC line are have less features - see table

‘’...No elbow from the pump to the arms make sure you get all the pressure getting from the pump right into the jet splashing on the dishes. this will make sure you are not losing any strength or energy in the path of the water,,

  1. Double skin panel cabinet,
  2. washing tank made of steel type AISI 304,
  3. with double filter system in the tank for the total protection of the washing pump.
  4. Door with double wall.
  5. The deep-drawn stainless steel washing and rinsing impellers are of the rotary and independent type.
  6. Innovative washing pump fixed directly in the tank without sleeves.
  7. Self emptying and with cooling fan, it guarantees a greater washing capacity ,saves energy and reduces noise to less than 48 dB.
  8. Peristaltic rinse aid dosing as standard.Detergent dosing optional.

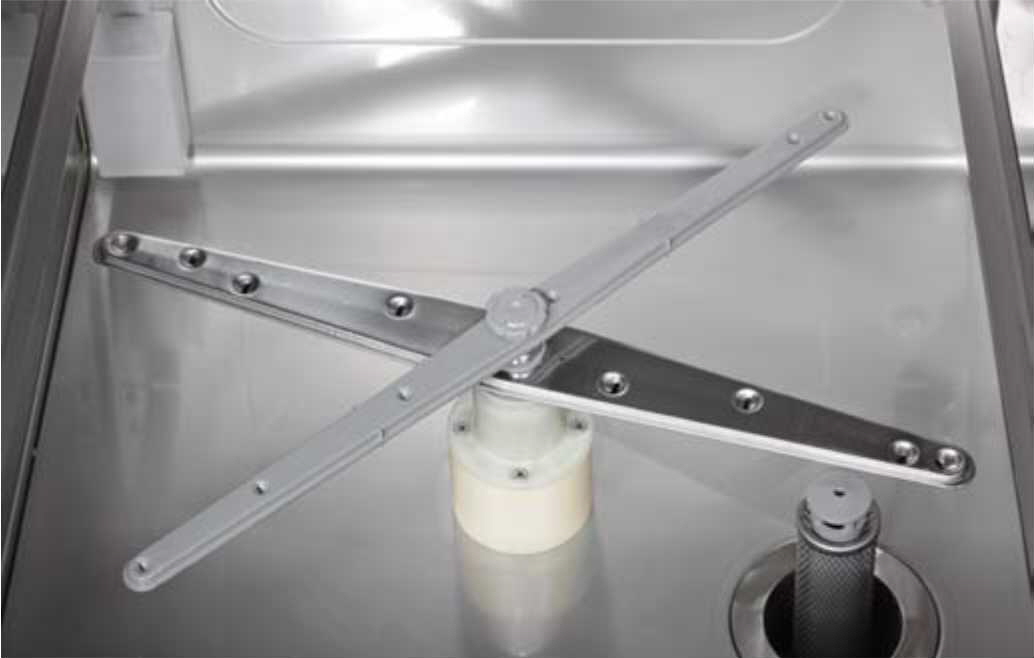

CATALOGO EN-FR 2016 ed 5 mail (8)-20 (1)

Model

Dimensions, mm

power, kWt

cycle time, s

Productivity
racks per hour

cassettes Dimensions

The height of the feed opening

Front dishwashers

    UCLT-500

24 x 23 X 32.4

4.9

60/120/180/480

30/20

20 x 20

12.6 in

    UCLT-700

23.8 x 23.8X 33.5

5.1

60/120/180/480

32/20

20 x 20

13.8 in

Machines for washing GN, baking sheets, trays and plates for pizza with front loading

    UCLT-800

675x720x1080

6.75

175/20/180

48/30/20

570h620 mm

420 mm

PREMIUM VS BASIC

 700

500

ENERGY SAVER STANDBY MODE

l

l

INSULATED DOUBLE SKIN CABINET CONSTRUCTION REDUCES  ENERGY  COSTS, NOISE LEVELS  AND KEEPS THE WASH AREA AMBIENT TEMPERATURE, TO AN ABSOLUTE MINIMUM

l



PRESSED MOLDED WASH TANK WITH RADIAL CORNERS

l



DOUBLE  FILTERS  FOR HYGIENE AND EASY MAINTENANCE.

l



BALANCED DOOR FOR A COMFORT USE.

l

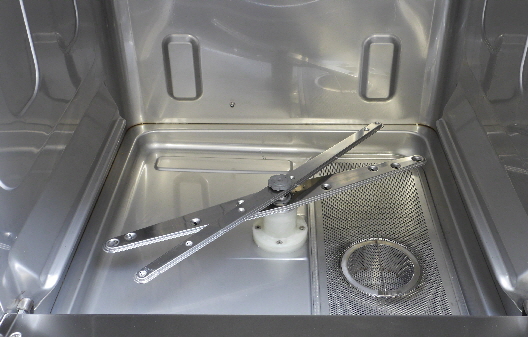

vasca N50

We carry LOW TEMP & HIGH TEMP dishmachines - read here before choosing a dishwasher

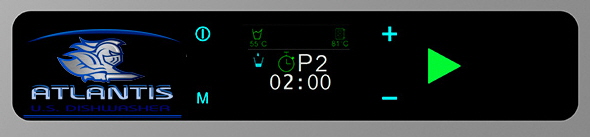

 ATLANTIS  dishwashers come with the smart control panel that switch to low temperature  “standby mode” on the fly by smart controllingsmartcard the heating elemediduknownts when dishwashers not in use for 30 minutes so even if you take the HIGH TEMP machine, your electricity bill will be significantly reduced compared to any usual booster that our competitors carry for their dishwashers.

Read more on the benefits of Smart Control Panel here

CATEGORY

CODE

DESCRIPTION

INTERFACE

REG

ELECTROMECHANICAL system , 3 programs

DIGI

DIGITAL system 4 programs

EVC

LCD 4 programs , Economy mode, shut down mode

SOFTENER

S

Internal softener

RINSE PUMP

RP

RINSE PUMP IMPROVE RINSE

TANK BRAKER + RINSE PUMP

BRK

TANK BREAKER FOR LOW PRESSURE AREAS+ RINSE PUMP

GERMANY PUMP

G

PUMP MADE IN GERMANY

DRAIN PUMP

DR

DRAIN PUMP

RINSE AIDE DISPENSER

RD

CHEMICAL DISPENSER FOR RINSE AID

DETERGENT DISPENSER

DD

CHEMICAL DISPENSER FOR DETERGENT

THERE ARE MANY OPTIONS YOU CAN CHOOSE FROM - PLEASE MAKE SURE YOU MAKE WISE DECISION .ALL DISHWASHER CAN BE STRAIGHT OR CORNER WITHOUT ADDITIONAL MODIFICATION .ADDING AN OPTION WILL COST LITTLE MORE ON THE SHORT RUN BUT WILL BENEFIT FOR MANY YEARS.

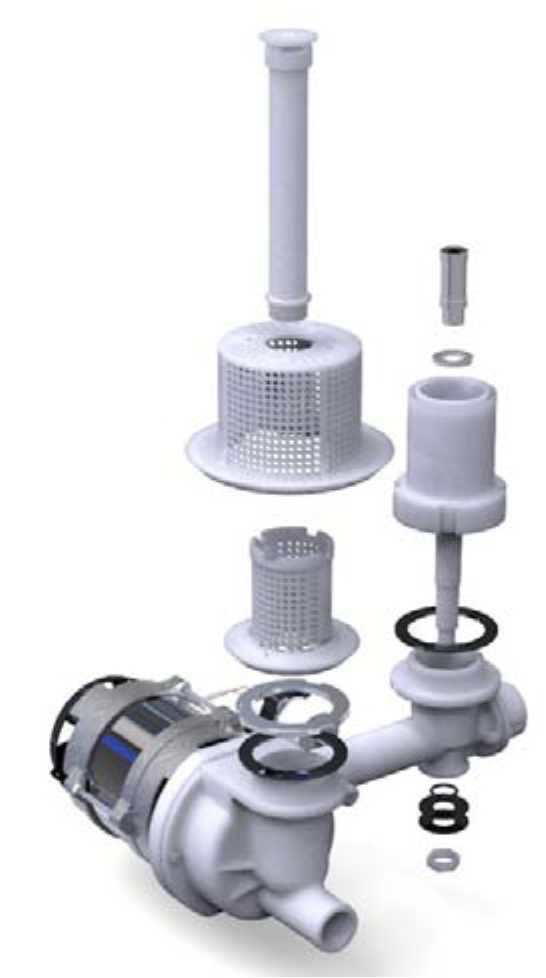

pump tube1

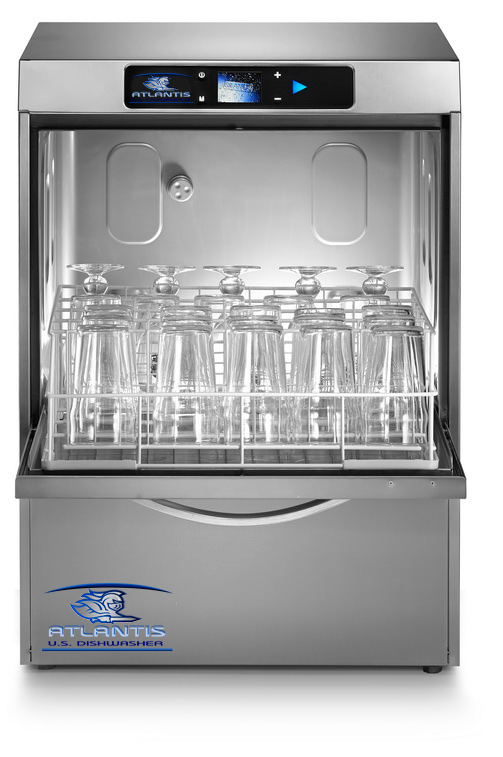

ATLANTIS-UNDERCOUNTER-PREMIUM-WEB

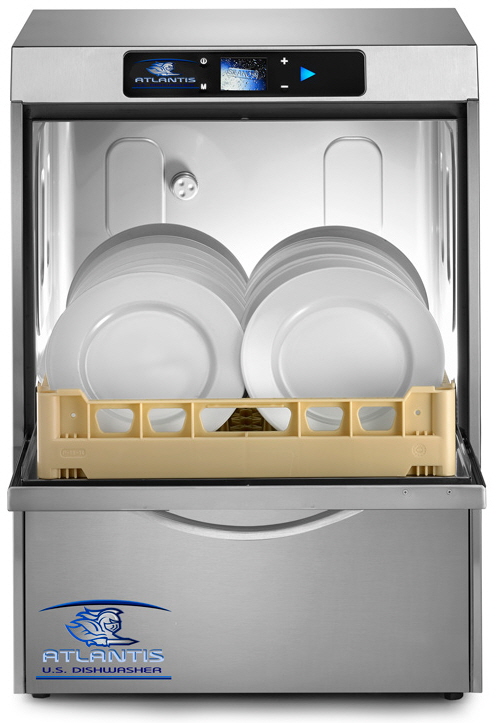

ATLANTIS-UNDERCOUNTER-WEB
